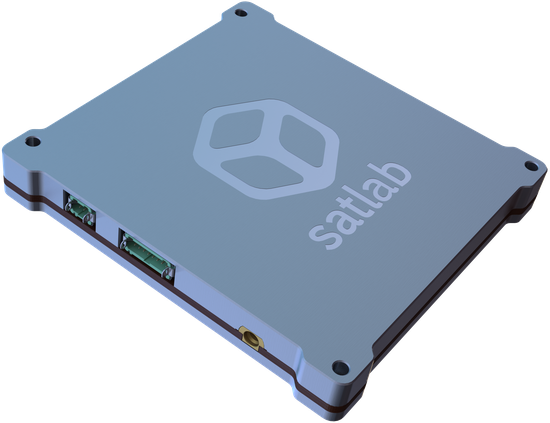

Polaris 4-channel AIS Receiver

The Satlab Polaris is a fully self-contained software-defined radio receiver for the maritime VHF band, with integrated demodulators for reception of standard and long-range AIS messages.

This versatile SDR offers excellent performance given the typical size, weight and power constraints of a CubeSat - or as an additional payload on larger LEO satellites.

Polaris is Satlab’s second generation Satellite-AIS receiver, based on the in-orbit experience gained from the QubeAIS receiver, which has flown on several missions since 2013.

Features

Key Parameters

ParameterSpecification
Frequency coverage156.000 to 162.025 MHz
AIS channel frequencies156.775, 156.825, 161.975, 162.025 MHz
Sensitivity-118 dBm (80% reception rate)
Noise figure2 dB
Frame store capacity261120 frames
Input voltage4.5 - 40 V
Typical power consumption1350 mW (5 V input, 25℃)
Operating temperature-40℃ to +85℃
CAN-busUp to 1 Mbit/s
RS-422Full duplex, up to 3 Mbit/s
EthernetFull duplex, 100 Mbit/s
Primary storage128 MB NOR-flash
Secondary storage1 GB SLC SD card
Dimensions93.0 x 87.2 x 12.5 mm
Mass185 g

Qualification status

Additional resources

Customization

Custom hardware and software request can often be accommodated. Please see the R&D section


Standard lead time: 8 weeks
